GIS SURGE ARRESTER TESTING

1. GIS surge arrester was tested by injecting nominal voltage injection during HV test

2.In 380 kV GIS the single phase nominal voltage 220kV was injected in Surge Arrester Through bus.

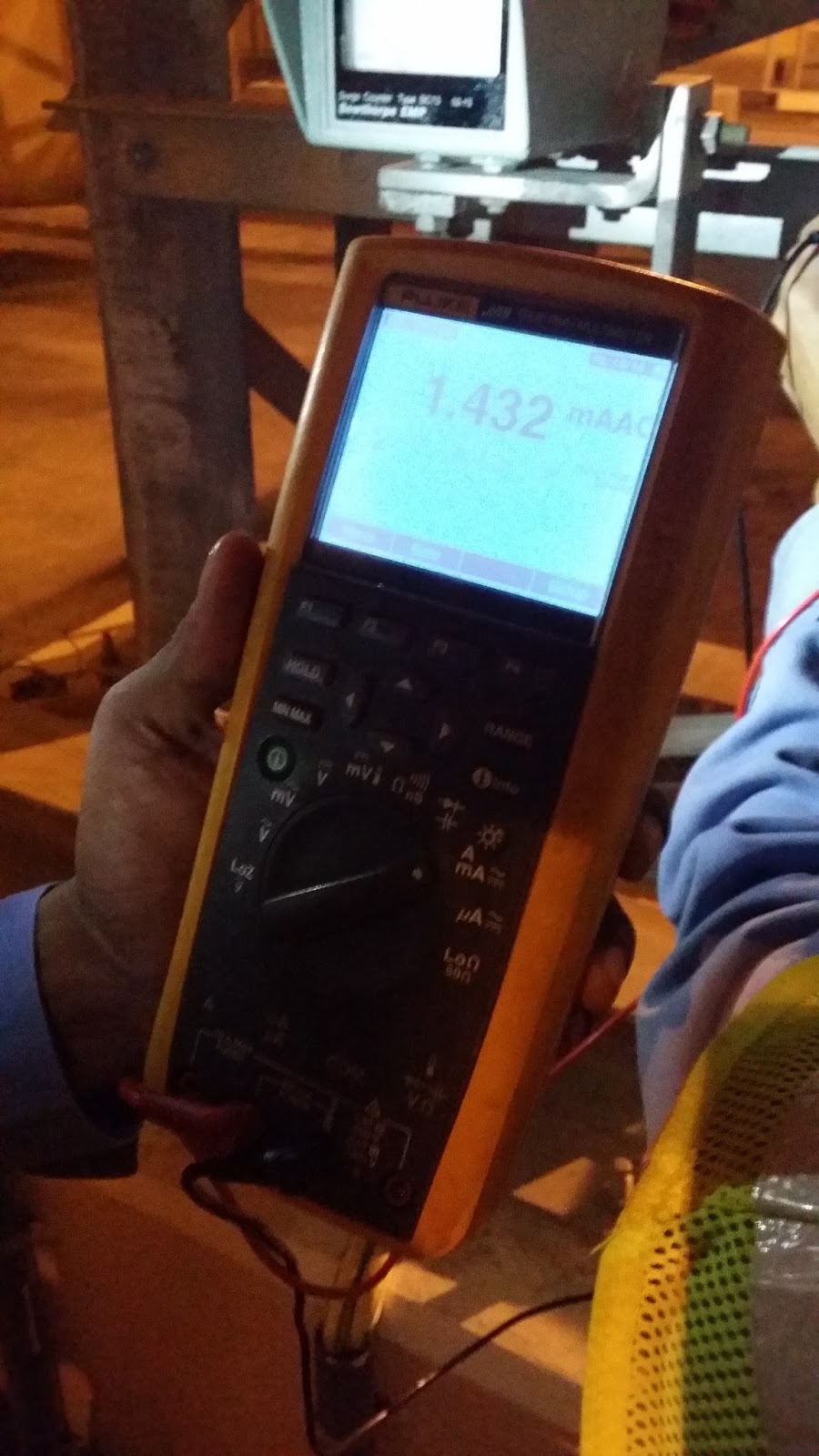

3. The leakage current mili amps measurement was measured in surge counter and Multi meter.

4. There by the paper connections are conformed.

5. Some cause the outgoing cable bus link and Surge arrester link will be same. So arrester should dismantle separately and Tan Delta test should contact on the table.

REC 670 Minimum Current Measurement Issue

1. 380 kV line  Metering CT was connected with BCU ( Bay control Unit) in GIS LCC.

2. The metering CT Ratio is 1500/1.

3. During SAS Pre commissioning measurement was checked like current injected 5% , 10% , 50%.

4. 5% Primary current 75 amps and REC 670 not read and current shows 0 in the display.

5. The secondary of 75 Amps is 0.05 amps which is not seance  by REC 670 relay.

6. MW also shows zero because of current seances as 0.

7. REC 670 seance above 100 amps primary that means above 0.061 amps.

8. Client not accept this condition.

9. After long discusses the Relay setting was change as below and relay start to read from Zero current.

10. This setting was changed for Reactive and Active & Apparent Power



ELSTER ENERGY METER TESTING PROB

RED 670 SAS PRB ISSUE

As per drawing there are two SAS IED 61850 port should be available in the relay. One is main port and other one is redundant port.

But the relay dose n't have the redundant port.

The new card was ordered with PRP redundant port.

The new card was changed but both port was not communicated with SAS and relay shows following error.

Relay was not communicate with SAS .

Manufacturer send a firmware for the new card. The firm ware is a " . bat" each relay have  individual firmware.

Initially this firm ware not up load in to relay and its need to switch off fire wall and Auti vireos.

Then firmware was updated in the relay and Redundant PRP status shows " OK".

 Still relay not communicate with SAS and shows following error.

Then SAS engineer check the IP address in the relay and it was not mach.

Finally he correct IP address and every think get normal and relay communicated with SAS.
